Emfad – UG12 DS

EMFAD – measurement method based on the measurement of ground conductivity anomalies caused by
– Metals, metal objects, barrels, pipes, cables, channels, concrete shelters, cellars, electrolytes, etc.
– Conductivity/transport anomalies caused by voids, ground movements, fillings, intercalations, soil or rock cracks, wells/vents can be detected.

EMFAD technology is successfully used by scientific authorities, professionals and hobbyists worldwide under different climatic and geological environmental conditions.

Generally, its application areas worldwide are archaeology, geophysics, geology and hydrology, and it is also used in different fields, such as detection and drilling of contaminated areas, ground surveys of construction sites, mineral exploration and detection, road construction and durability determination, waste research and enrichment studies, treasure searches, etc., and it provides users with definite and clear results, ensuring their success.
Technical Information:

Electromagnetic measurement method
– operating worldwide with its own transmitter and passive and active external transmitters

Frequency-Type
– External Frequency: 0-160 kHz; – Custom Frequency: 19, 24, 33, 70, 90, 124 kHz

Measurement recording performed by microprocessor
– Automatic: 2 readings per second, 1 reading per second, 1 reading every 2 seconds, 1 reading every 4 seconds
– Manual: Hand can trigger each measurement point, changes are automatically recorded via Tablet PC Bluetooth Measurement

Representation of measurement
-Real-time measurement on Tablet PC

Density measurement
- Walking speed, distance and profile, measuring point distance depending on stride length>=10cm

Sounding
-Overview measurement: >= 12 m; – Data measurements up to 12 m

Weight – 2.5 kg

Working times – Receiver/Bluetooth: 8 hours; own transmitter: 8 hours; Tablet-PC: 9 hours

At operating temperatures
– -10 to +50 C

Data processing
– Recording and presentation software in real time on a tablet PC with EMFAD-TAB
– With EMFAD-Scan evaluation for 2D and 3D presentation, interpretation, modelling, documentation and printing

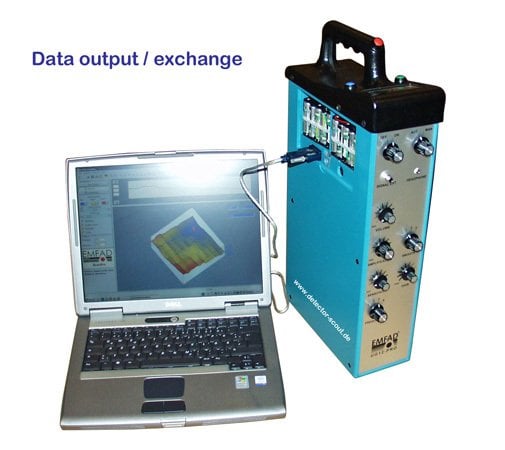

Data Export - Microsoft Excel and SURFER (Golden Software), as well as any application that can process ASCII files for further processing and documentation
